Breaker Bar vs. Torque Wrench Understanding the Differences and Applications
When it comes to tools, choosing the right tool for a specific job is crucial for efficiency, safety, and work integrity. Among the essential tools found in many workshops and toolboxes are the breaker bar and the torque wrench. While both are used to turn fasteners with sockets, their primary functions, processes, and applications are significantly different.
My goal in this report is to clearly differentiate between these two tools, provide a broad concept for new users, and highlight their respective roles in various fields.
What is a Breaker Bar?
Breaker Bar: A heavy-duty tool engineered to loosen seized, overtightened, or rusted fasteners (nuts/bolts) when standard tools lack sufficient leverage. Its long, rigid handle (10–40+ inches) exploits the physics of leverage to multiply applied force into high torque (τ = F × r), breaking stubborn bonds.
Constructed from ultra-durable materials like chromium-vanadium steel (AISI 6150) or alloy steel, its non-ratcheting, single-piece design ensures maximum strength and minimal risk of mechanical failure under extreme loads.
Key Features & Mechanics:
Leverage Principle: Torque amplification via handle length (longer handle = greater torque).
Cheater Bar: A metal pipe slid over the handle to extend leverage further—use cautiously to avoid tool/fastener damage or injury.
No Ratchet: Sacrifices convenience for brute-force reliability.
5 Types of Breaker Bars:
Fixed Head: Basic, rigid design with no pivoting—ideal for direct, high-torque applications.
Flex/Swivel Head: Head pivots up to 180° for accessing fasteners in cramped or angled spaces.
Ratcheting: Integrates a ratchet mechanism for incremental tightening/loosening (weaker under extreme torque).
Handle Hinge: Hinged mid-handle adjusts the socket angle for awkward, confined work areas.
Extendable: Telescoping handle adjusts length (e.g., 18″ to 32″) for customizable leverage and portability.
Critical Use Notes:
Prioritize socket compatibility (e.g., ½”, ¾” drive sizes) and material quality to avoid tool deformation.
Avoid excessive force on small fasteners; match breaker bar size to the fastener’s torque requirements.
Always grip securely and brace for sudden release when breaking loose seized components.
What is a Torque Wrench?
Torque Wrench: A precision tool that applies a specific, controlled rotational force (torque) to fasteners, ensuring they’re tightened to manufacturer-recommended specs. Prevents over-tightening (damage, stripped threads) and under-tightening (loosening, leaks, failure) by delivering exact clamping force.
6 Types of Torque Wrenches:
Click-Style: Adjustable clutch emits a click at set torque. Popular for ease and accuracy.
Beam-Style: Uses a deflecting beam and scale—simple but less precise.
Digital/Electronic: Sensors + digital display; offers data logging, high accuracy.
Dial-Type: Dial indicator shows torque; more precise than beam.
Split Beam: Dual-beam design for higher torque strength and accuracy.
Hydraulic: Hydraulic pressure for industrial-scale, high-torque applications.
Key Features:
Calibration: Requires regular checks to maintain accuracy.
Torque Units: Measured in Newton-meters (Nm), foot-pounds (ft-lb), or inch-pounds (in-lb) (less common: kgf.cm, ozf.in).
Critical Use: Ensures proper fastener preload, joint stability, and load distribution.
Why It Matters:
Safety: Prevents component failure in engines, machinery, or structures.
Durability: Avoids thread/stretch damage from excess force.
Compliance: Meets engineering standards for critical assemblies (e.g., automotive, aerospace).
Breaker Bar vs. Torque Wrench: Key Differences:
To provide a clear comparison, I am providing the following table describing the key differences between a breaker bar and a torque wrench:
| Feature | Breaker Bar | Torque Wrench |
| Primary Use | Loosening extremely tight, stubborn, or seized fasteners. | Applying a specific, measured amount of torque when tightening fasteners. |
| Mechanism | Long, robust, typically non-ratcheting metal bar providing high leverage. | Incorporates a mechanism (click, beam, digital, dial, etc.) to measure torque. |
| Torque Control | Does not provide precise torque measurement or control. Relies on user force. | Allows the user to set and achieve a specific torque value. |
| Precision | Low precision in terms of tightening force. | High precision in applying the desired tightening force. |
| Calibration | Not typically required or possible. | Requires periodic calibration to ensure accuracy of torque readings. |
| Risk | Potential for over tightening or damaging fasteners if used for tightening. | Potential for damage to the wrench if used to loosen fasteners exceeding its rating. |
In essence, the breaker bar is a tool for applying significant force to loosen fasteners, prioritizing power over precision. Conversely, the torque wrench is a precision instrument designed to apply a controlled amount of force for tightening, prioritizing accuracy to prevent damage and ensure proper assembly.
Sector-Specific Applications Breaker Bar vs. Torque Wrench
Automotive Sector:

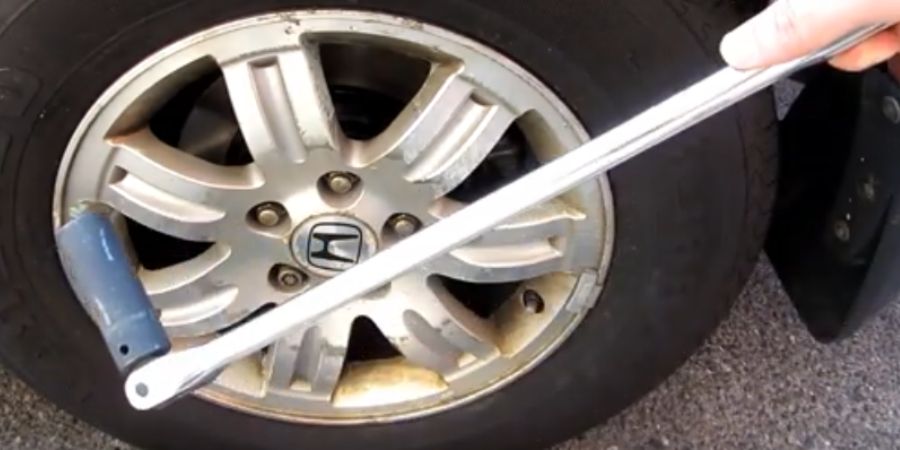

Breaker Bar Usage: Breaker bars are indispensable in automotive repair for tasks such as initially loosening wheel lug nuts, which are often tightened to values exceeding 100 ft-lb.
They are also crucial for removing stubborn suspension components like axle nuts and control arm bolts, as well as other heavily tightened or corroded fasteners on the vehicle. The common experience of tire shops over-tightening lug nuts highlights a frequent need for breaker bars in routine automotive maintenance.

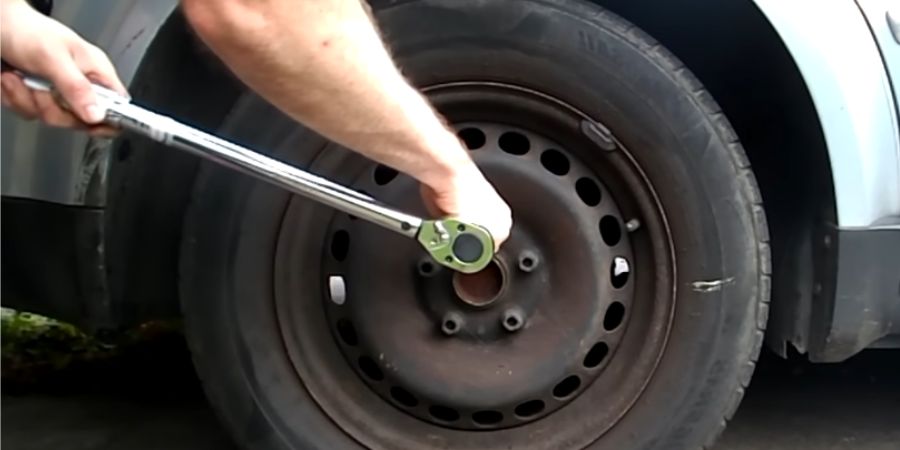

Torque Wrench Usage: For automotive applications, torque wrenches are essential for tightening wheel lug nuts to the manufacturer-specified torque, typically in the range of 80-100 ft-lb for many standard passenger cars. They are also critical for tightening various engine components, where torque specifications are paramount for proper sealing and function.
For example, cylinder head bolts and connecting rod bolts have very specific torque requirements that must be followed (refer to the vehicle’s service manual for precise values). Brake components like caliper bolts also require precise tightening to ensure safety.
Even spark plugs need to be tightened to a specific torque, often around 15-20 ft-lb, to ensure a proper seal. The use of “torque to yield” fasteners in modern engines further emphasizes the need for accurate torque application.
Automotive Torque Examples
| Application | Typical Torque Range (ft-lb) | Notes |
| Wheel Lug Nuts | 80-100 | Varies significantly by vehicle; always check the owner’s manual. |
| Cylinder Head Bolts | Varies significantly | Engine-specific; consult the vehicle’s service manual. |
| Connecting Rod Bolts | Varies significantly | Engine-specific; consult the vehicle’s service manual. |
| Brake Caliper Bolts | Varies by vehicle | Refer to the vehicle’s service manual for specific torque values. |
| Spark Plugs | 15-20 | Varies by engine and spark plug type; check specifications. |
Construction and Heavy Equipment Sector:
Breaker Bar Usage: In construction and heavy equipment maintenance, breaker bars are frequently used to loosen extremely large and high-torque bolts on machinery like excavators and cranes.
They are also employed in assembling and disassembling scaffolding, where large structural bolts can become very tight. The use of extended pipes on breaker bars in industrial applications highlights the immense torque often encountered in this sector.
Torque Wrench Usage: Torque wrenches are critical for tightening high-strength structural bolts used in steel construction, often conforming to ASTM standards like A325 and A490. For example, an ASTM A325 bolt with a 3/4-inch diameter might have a tightening torque range of 350-425 ft-lb for a plain finish or 175-213 ft-lb if galvanized and waxed.
Precise torque application is also essential for critical connections on heavy machinery to ensure structural integrity and prevent failures under heavy loads.
Construction Bolt Torque Examples (ASTM A325)
| Bolt Size (inch) | Tightening Torque Range (ft-lb) Plain | Tightening Torque Range (ft-lb) Galv+Waxed |
| 1/2 | 100 – 117 | 50 – 58 |
| 5/8 | 198 – 240 | 99 – 120 |
| 3/4 | 350 – 425 | 175 – 213 |
| 7/8 | 569 – 685 | 284 – 343 |
| 1 | 850 – 1,017 | 425 – 508 |
Manufacturing and Assembly Lines:
Breaker Bar Usage: While less common in routine assembly, breaker bars can be used for the initial loosening of very tight or seized components during manufacturing or for maintenance purposes.
Torque Wrench Usage: Torque wrenches are extensively used in manufacturing for the precision tightening of components in a wide range of products. In automotive assembly, engine components are tightened to specific Nm values. In electronics manufacturing, very low torque values (often less than 5 Nm and sometimes measured in cN.m) are crucial for delicate parts.
Ensuring consistent assembly quality and preventing product failures due to improperly tightened fasteners are key applications of torque wrenches in this sector. The wide range of torque values required in manufacturing, from very low to very high , underscores the importance of having the right type and range of torque wrench for the specific task.
Manufacturing Torque Examples (Illustrative)
| Application | Typical Torque Range (Nm) | Notes |
| Small electronic component screws | 0.1 – 5 | Requires very precise, low torque to avoid damaging delicate components. |
| Automotive engine manifold bolts | 20 – 50 | Torque values vary depending on the specific engine and manufacturer. |
| Heavy machinery assembly bolts | 100 – 500+ | Used for large, load-bearing connections in industrial equipment. |
FAQs
When to Choose a Breaker Bar?
Opt for a breaker bar when faced with a nut or bolt that is already extremely tight and needs to be loosened. It is the tool of choice when a standard wrench or ratchet cannot provide enough leverage to initiate movement. The primary goal when using a breaker bar is to overcome the initial resistance of the fastener, not to tighten it to a specific value.
When is Using a Torque Wrench Essential?
A torque wrench is essential when tightening fasteners where the manufacturer specifies a precise torque value.
This is particularly important for critical components in automotive applications (such as engine, brakes, and suspension), construction (like structural bolts), and manufacturing (for precision assemblies). Using a torque wrench helps prevent damage caused by overtightening and ensures the proper function and safety of the assembled parts by achieving the correct clamping force.
Why Using a Torque Wrench to Loosen Tight Bolts is Generally Not Recommended?
Using a torque wrench to loosen very tight bolts is generally discouraged because it can damage the sensitive calibration mechanism within the wrench, potentially leading to inaccurate readings when you subsequently use it for tightening.
Torque wrenches are precision measuring instruments designed for applying controlled force, not for enduring the high and often sudden forces required to break loose seized fasteners. It is best to use a robust breaker bar for the initial task of loosening tight bolts and reserve the torque wrench for the controlled and accurate tightening of fasteners to their specified values.
Brief Explanation of Fastener Grades and Their Importance?
Bolts and nuts come in various grades, which indicate their material composition and strength characteristics. Common grading systems include SAE, Metric, and ASTM. The grade of the fastener directly influences the appropriate torque specification for tightening it.
Higher-grade fasteners are typically stronger and can withstand higher torque values. Correctly identifying the grade of the fastener and consulting the relevant torque specifications are crucial for ensuring a safe and properly assembled joint.
